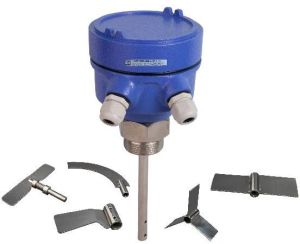

Rotating Paddle Point Level Switch



Application :

JAYCEEROTO heavy duty, rotary paddle switches are the most suitable for level detection of dust granules and other free flowing solids up to the particle size of Ø10 mm. Mounted in bins, silos and hoppers it can be applied for control of level, filling and emptying as well as for protection against overfilling.



Main Application Areas :

Agriculture : beet slice, hard crop, Chemical industry: plastic powders, granules, pellets

Food industry : sun flower, sun flower cod, Building industry: sand, calcium powder, gypsum, coffee and cacao powder, flour, sugar, etc. Energetic: active soot, coal powder, fly ash.



Number and material of vanes

Specific gravity and particle size of the material provides orientation for the number of vanes. Most commonly used is the stainless steel, single vane blade. The lowest specific gravity for this paddle is 0,4 kg/dm3. For lighter materials the use of 3- or 4-vane paddle is recommended.



PROBES

Standard probe length : 150 mm.

Longer length up to 3 m. Construction and length of the probes would depend upon the application. Various types of probes:, Rigid and Flexible available.



Model:

  • 6010 – 110V AC
  • 6020 – 24 V DC
  • 6030 – 230 V AC
  • 6500 – Detection of solids under water, water columns 10mtr. The suffix will be same as above.
  • 6510 – 110 V AC
  • 6520 – 24 V DC
  • 6530 – 230 V AC

Specifications

Model JAYCEROTO – 6000 SERIES
Housing Cast Aluminum
Insertion length 150 mm standard
Extension upto 3 mtrs
Revolution per minute: 1 / minute
Ambient temperature –40 °C…+65 °C
Material of Wetted Parts Stainless Steel
Number of vanes stainless steel, 1 to 4, various types available as per application.
Process connection 1-1/2” BSP ( standard) others on request.
Medium specific gravity min. 0,08 kg / dm3
Medium temperature 40 °C…+80 °C
Special version up to 200 °C available
Electrical Cable Gland 2xpg 13.5 ( Polymer)
Medium pressure max. 2 bar
Special Version Detection of solids under 10 mtr water colomn.
output SPDT 230 V AC, 10 A
Power supply 230 V AC, ±15% or 110 V AC or 24 V DC
