Level Position Switch


Leading Manufacturers, Exporters, Wholesaler and Retailer of Level Position Switch - RF Type, RF Level & Position Switch and RF Level Position Switch from Pune.

Level Position Switch - RF Type

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Process Connection ½ “ BSP/ NPT
Probe Insulation PTFE
Housing Stainless Steel
Ambient Temperature -20...60°C
Process Temperature -20...80°C
Protection Weather Proof
Installation Top/ Side Mounting
Connection Cable 1.5 Meter , 3 Wire
Cable Gland PG7
Input Supply 12...30 V DC, 15 mA max
Power – Up Time 2 Sec.
Hysteresis ± 1 mm
Repeatability ± 1 mm
Reaction Time 0.2 Sec. Type
Output (active) Max.100 mA, Short Circuit Protected
Output Type PNP Standard
Fail Safe High/ Low Selectable
Download View

Click to view more

Preferred Buyer From

Location Worldwide

Capacitance type level limit detection has been widely used in the past to solve level detection problems in various applications. Their successful operation used to depend on the knowledge and experience of site conditions and skill of calibration. Vector series of compact capacitance switches have this intelligence built into the system and so do not need complicated skilled calibration. It is simply plug and play, fit and forget concept.

The moment the instrument is installed and switched and switched ON it evaluates the initial capacitance and waits for the material level to rise. When covered, it detects the material and indicates the status. When the level recedes it automatically tunes to the ne value of capacitance that may have occurred due to change in environment in the vicinity of the probe, or due to residual material coating.

It is now ready to detect the next rise in level. The auto tuning is refreshed every emptying cycle, thus, maintaining appropriate sensitivity through. Slow changes due to changes in moisture, humidity and temperature are also considered by the long term filtering and averaging algorithm thereby making the system very reliable.

General
We are being the best  RF Level / Position Switch manufacturer in India,  Jayceetech provides clear and straight technical specification for each product. Some common technical specifications are available in all kinds of RF Level / Position Switch.

Details

  • Compact design, so suitable for small vessels.
  • Auto tunes for every emptying cycle.
  • Precise switch point even when coated.
  • Reverse polarity protection.
  • Built in LED indicators for status, alarm & normal operation.
  • Microcontroller Based.
  • High or Low fail safe selected provided.


Applications

  • Level detection for storage tanks, and pipelines:  Point level detection of high and low filling level.
  • Level Detection in light weight and powdered media:  Point level detection in foamy and power media.
  • Level detection in Non-Conductive sticky media and Liquids:  Point level detection in sticky, pasty, viscous media, even after coating.
  • Level detection in solid media
  • Protection pumps from running dry.

Read More...


Yes! I am interested


RF Level & Position Switch

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Process connection ½ “ BSP/ NPT
Probe Insulation PTFE
Housing Stainless Steel
Ambient Temperature -20...60°C
Process Temperature -20...80°C
Protection Weather proof
Installation Top/ Side mounting
Connection Cable 1.5 meter , 3 wire
Cable gland PG7
Input supply 12...30 V DC, 15 mA max
Power – up time 2 sec.
Hysteresis ± 1 mm
Repeatability ± 1 mm
Reaction time 0.2 sec. Type
Output (Active) Protectd Max.100 mA,short–circuit
Output Type PNP standard
Fail Safe High/ Low selectable
Download View

Click to view more

Preferred Buyer From

Location Worldwide

SALIENT FEATURES :

  • Compact design, so suitable for small vessels.
  • Auto tunes for every emptying cycle.
  • Precise switch point even when coated.
  • Unaffected by slow variations in humidity and temperature.
  • Reverse polarity protection.
  • Open collector PNP output current limited to 100 mA as standard.
  • Built in LED indicators for status, alarm & normal operation.
  • High or Low fail safe selected provided.
  • Microcontroller Based.



Customize your Vector :

  • Customize Vector,according to their application requirement.
  • We cater to the needs of indusries such as food & beverages, petrchemical etc.
  • Providing unique solutions to our clients in a perfect way.



YOUR APPLICATION, OUR SOLUTIONS :

  • Level detection for storage tanks, and pipelines-

Point level detection of high and low filling level.

  • Level Detection in light weight and powdered media

Point level detection in foamy and powery media.

  • Level detection in Non Conductive sticky media and Liquids

Point level detection in sticky, pasty, viscous media, even after coating.

  • Level detection in solid media.
  • Protection pumps from running dry.

Read More...


Yes! I am interested

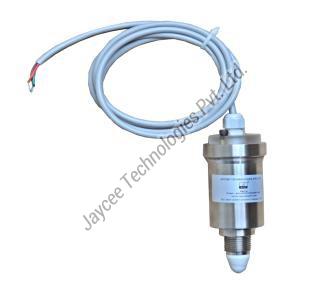

RF Level Position Switch

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Housing Stainless Steel
Probe Insulation PTFE, others
Ambient Temperature -20...60°C
Process Temperature -20...80°C
Protection Weather proof
Installation Top/ Side mounting
Connection Cable 1.5 Meter , 3 Wire
Cable Gland RG-7
Input Supply 12...30 V DC, 15 mA max
Hysteresis ± 1 mm
Repeatability ± 1 mm
Reaction Time 0.2 Sec. Type
Output Type PNP standard
Fail Safe High/ Low Selectable
Download View

Click to view more

Preferred Buyer From

Location Worldwide

Nothing to worry about the product quality and cost for all industry-usable products because Jayceetech is now available everywhere to cater the market needs. Yes, we are online as well the offline platform that provides different transmitters, switches, meters, and sensors that are usable in various industries. We design the RF Level Position Switch that is apply on every kind of fuel and similar products. It includes diesel, kerosene, and oil. The main usages of this RF Level Position Switch - JAYCEEVECTOR are for measuring the level detection in Non Conductive sticky media and Liquids.

Principal
Vector series of compact capacitance switches have this intelligence built into the system and so do not need complicated skilled calibration. It is simply plug and play, fit and forget concept. The moment the instrument is installed and switched and switched ON it evaluates the initial capacitance and waits for the material level to rise. When covered, it detects the material and indicates the status. When the level recedes it automatically tunes to the no value of capacitance that may have occurred due to change in environment in the vicinity of the probe, or due to residual material coating. It is now ready to detect the next rise in level. The auto tuning is refreshed every emptying cycle, thus, maintaining appropriate sensitivity through. Slow changes due to changes in moisture, humidity and temperature are also taken into account by the long term filtering and averaging algorithm thereby making the system very reliable.

Details

  • Compact design, so suitable for small vessels
  • Precise switch point even when coated
  • Unaffected by slow variations in humidity and temperature
  • Open collector PNP output current limited to 100mA as standard
  • Built in LED indicators for status, alarm & normal operation
  • High or Low fail selected provided


General
Reach the best RF Level Position Switch - JAYCEEVECTOR manufacturer in India. Check the designs online by downloading catalogue and flipbooks. Jayceetech thrives to deliver the best quality products across the globe in order to be the best manufacturer as well as the best manufacturer. Don’t waste your time and money, just reach us, we will give you the required tech product within a few clicks.

Applications

  • Level detection in Non Conductive sticky media and Liquids
  • Level detection for storage tanks, and pipeline
  • Level detection in solid media
  • Protection pumps from running dry

Read More...
